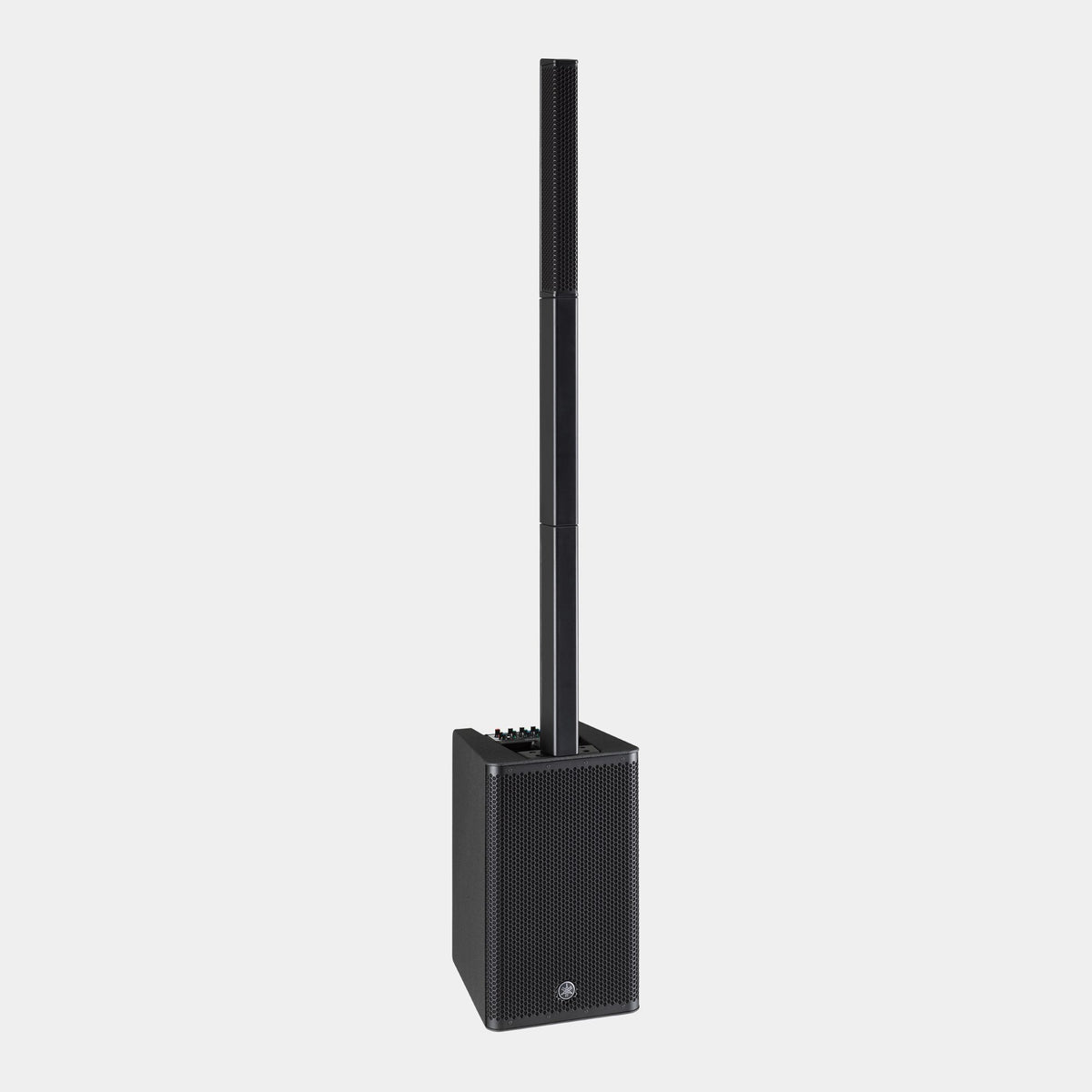

The Yamaha STAGEPAS 1K mkII is a portable column PA system combining a powered subwoofer, a 10-driver line-array speaker and an integrated five-channel digital mixer. The speaker and spacers stack into the subwoofer, creating a compact setup without a separate speaker stand or speaker cables. Its three mono channels and stereo line input accommodate microphones, instruments and wired playback, while Bluetooth provides a wireless source for backing tracks or music.

Two mono channels include Hi-Z inputs for directly connecting instruments such as an acoustic-electric guitar or bass. One-knob channel EQ and Speech, Music and Club master modes make basic sound adjustments straightforward. SPX reverb adds effects to channels 1–3, and the Priority Ducker lowers background music when a qualifying speech signal is present. Use it for live music, DJ playback or presentations, and adjust mixer settings remotely with Yamaha’s STAGEPAS Controller app.

Specifications

• System type: Powered subwoofer with line-array speaker
• Mixer: 5 channels: 3 mono and 1 stereo
• Amplifier: Class-D; 1100 W dynamic power rating
• Drivers: 12 in (30 cm) cone subwoofer; ten 1.5 in (3.8 cm) cone array drivers
• Frequency range: 37 Hz–20 kHz (−10 dB)
• Coverage: 170° horizontal × 30° vertical
• Maximum output level: 125 dB SPL at 1 m on axis
• Bluetooth: Version 5.0; A2DP codecs SBC and AAC
• System dimensions: 334 × 2,000 × 418 mm (W × H × D), maximum assembled
• System weight: 23.0 kg maximum assembled
