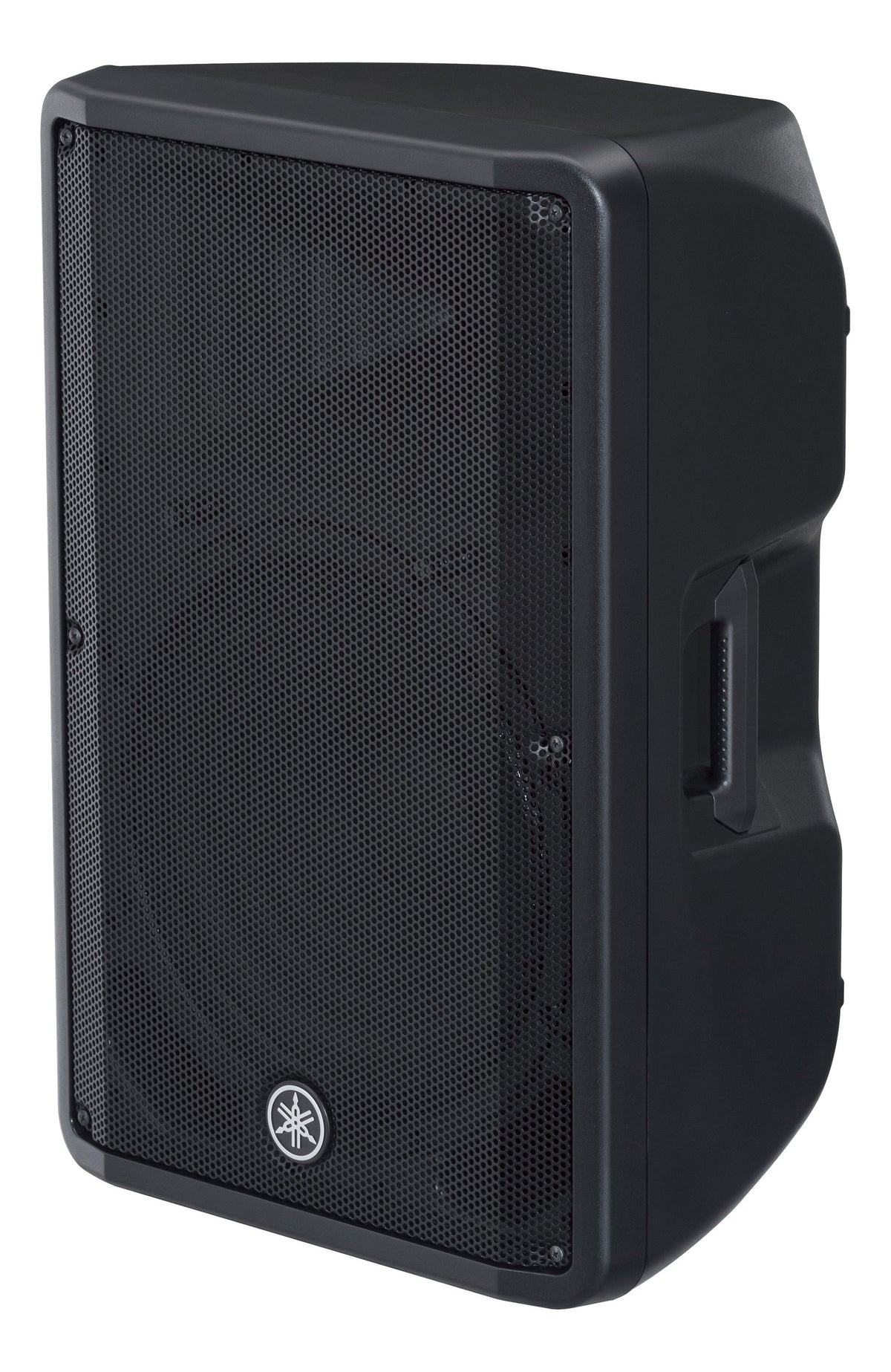

The Yamaha DBR15 is a 15-inch, two-way powered loudspeaker for live sound, DJ setups, and other sound reinforcement applications. Its bi-amped, bass-reflex design pairs a 15-inch woofer with a compression driver, with separate amplification for low and high frequencies. Use it as a main front-of-house speaker when you want substantial low-frequency output, or position it as a floor monitor.

D-CONTOUR presets tailor the response for FOH/MAIN or MONITOR use, with an OFF setting when no contour is needed. Two combo inputs accept XLR or phone plugs, and the second input also offers stereo RCA connections. The XLR output can pass through channel 1 or carry a mix of both input channels, making it practical to route a signal onward to another speaker. A 35 mm pole socket and M8 rigging points support common speaker placement and installation options.

Specifications

• System: 2-way, bi-amp powered, bass-reflex
• Frequency range: 50 Hz–20 kHz (-10 dB)
• Coverage: 90° horizontal × 60° vertical
• Drivers: 15-inch cone woofer; 1.4-inch diaphragm, 1-inch-throat compression driver
• Crossover: 2.1 kHz
• Output power: Dynamic: 1,000 W (LF 800 W, HF 200 W); continuous: 465 W (LF 400 W, HF 65 W)
• Maximum output level: 132 dB SPL, 1 m on axis
• Inputs and output: INPUT1: 1 combo; INPUT2: 1 combo plus 2 unbalanced RCA; 1 XLR3-32 output
