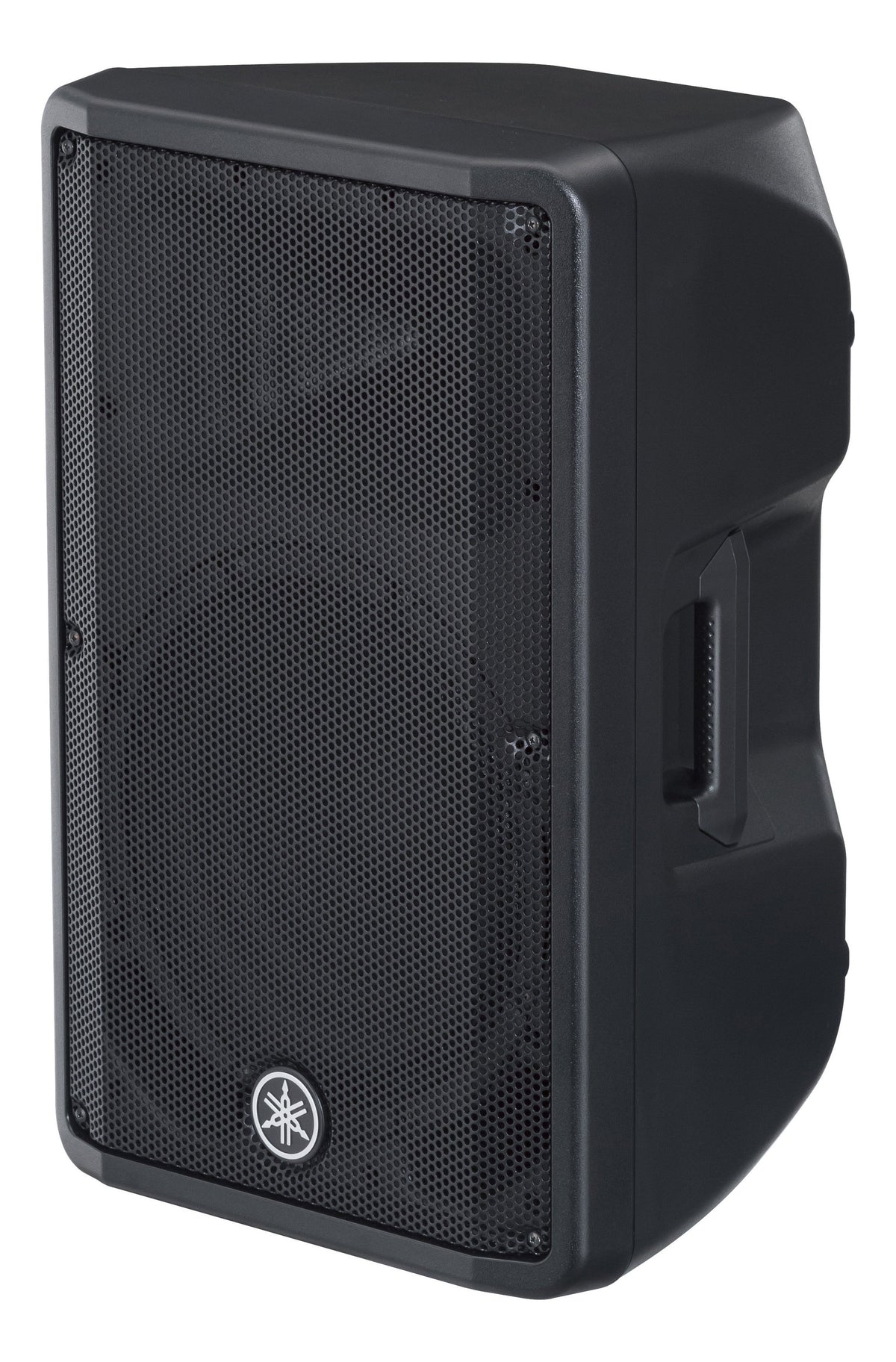

The Yamaha DBR12 is a two-way powered loudspeaker designed for live sound reinforcement. Its 12-inch low-frequency driver and separate high-frequency driver work with a bi-amplified system to deliver full-range sound. Use it as a front-of-house speaker, a floor monitor, or stage-side fill, depending on the needs of your setup.

Two input channels provide separate level controls, with a LINE/MIC setting for Input 1 and RCA inputs available on Input 2. The XLR output can pass Input 1 through or send a mix of both inputs onward, making it practical to link the speaker into a sound system. A high-pass-filter control and D-CONTOUR processing offer setup adjustments, with FOH/MAIN, MONITOR, and OFF choices for different applications. The cabinet also includes a 35 mm pole socket and rigging points for installation options.

Specifications

• System type: Two-way, bi-amp powered, bass-reflex loudspeaker
• Frequency range: 52 Hz–20 kHz (−10 dB)
• Drivers: 12-inch cone LF driver with 2-inch voice coil; HF driver with 1.4-inch diaphragm and 1-inch throat
• Coverage: 90° horizontal × 60° vertical
• Amplifier output: Dynamic: 1,000 W (LF 800 W, HF 200 W); continuous: 465 W (LF 400 W, HF 65 W)
• Maximum output level: 131 dB SPL at 1 m on axis
• Inputs and output: Input 1: one combo connector; Input 2: one combo connector and two unbalanced RCA inputs; output: one XLR connector
• Mounting: One 35 mm bottom pole socket; bottom and rear rigging points for M8 × 15 mm eyebolts
