From Ibanez:

• SPECS

  • body shape


    Grand Dreadnought body




  • bracing


    X-M Bracing




  • top


    Solid Sitka Spruce top




  • back & sides


    Flamed Maple back & Flamed Maple sides




  • neck


    Low Oval GripMaple neck




  • fretboard


    Maple fretboard




  • bridge


    Maple bridge




  • body binding


    Rounded body edge binding




  • inlay


    Abalone dot inlay




  • soundhole rosette


    Abalone rosette




  • tuning machine


    Chrome Die-cast tuners (18:1 gear ratio)




  • number of frets


    20




  • bridge pins


    Ibanez Advantage™




  • strings


    D'Addario® EXP16




  • string gauge


    .012/.016/.024/.032/.042/.053




  • string space


    11mm




  • factory tuning


    1E,2B,3G,4D,5A,6E




  • pickup


    Ibanez T-bar Undersaddle




  • preamp


    Ibanez AEQ-TP2 preamp w/Onboard tuner




  • output jack


    Balanced XLR & 1/4" outputs




  • battery


    9V x1







• NECK DIMENSIONS

  • Scale :


    650mm/25.6"




  • a : Width


    43mm at NUT




  • b : Width


    55mm at 14F




  • c : Thickness


    21mm at 1F




  • d : Thickness


    22mm at 7F




  • Radius :


    400mmR





  Features







  A.I.R.port

  Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

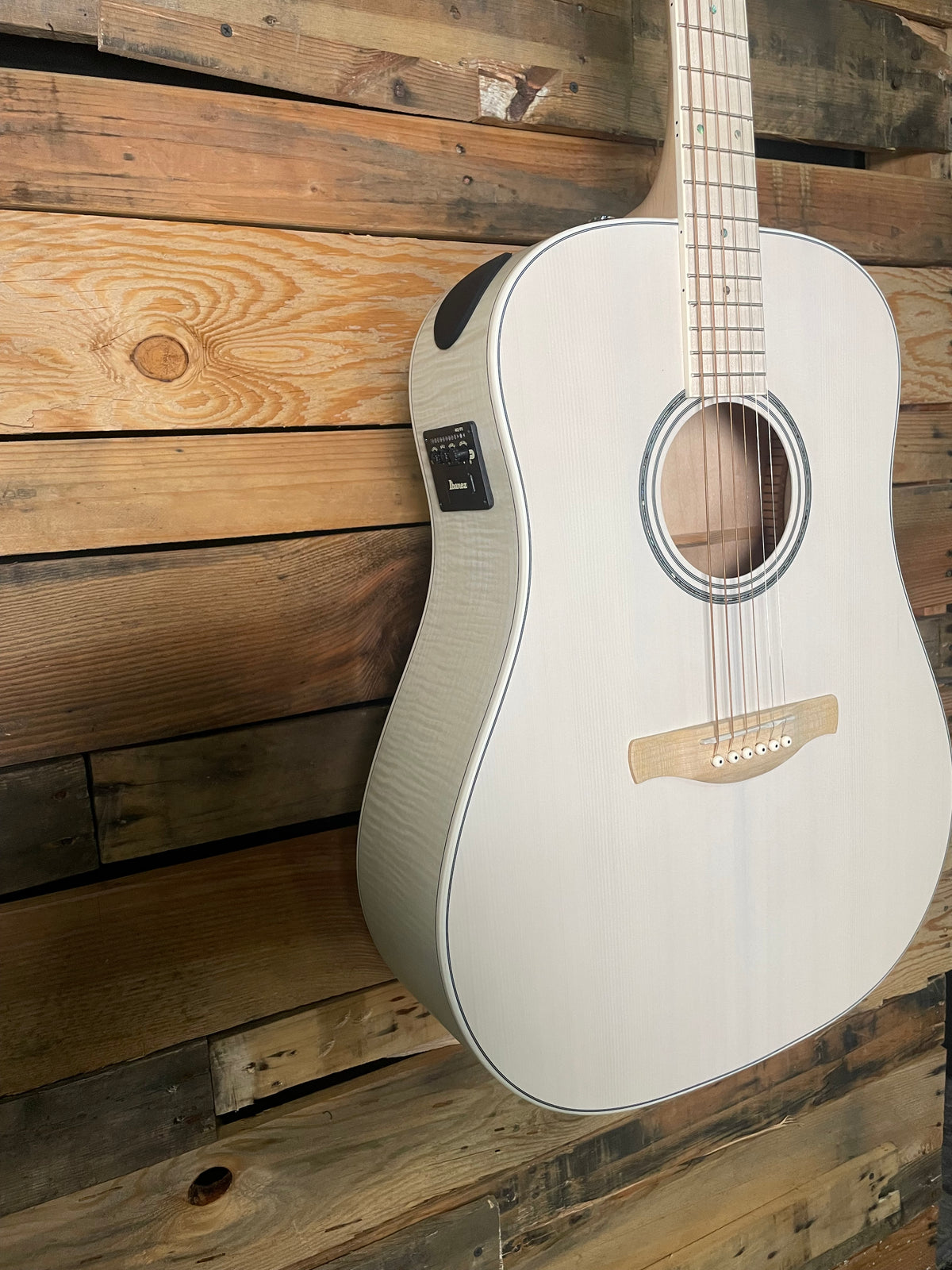

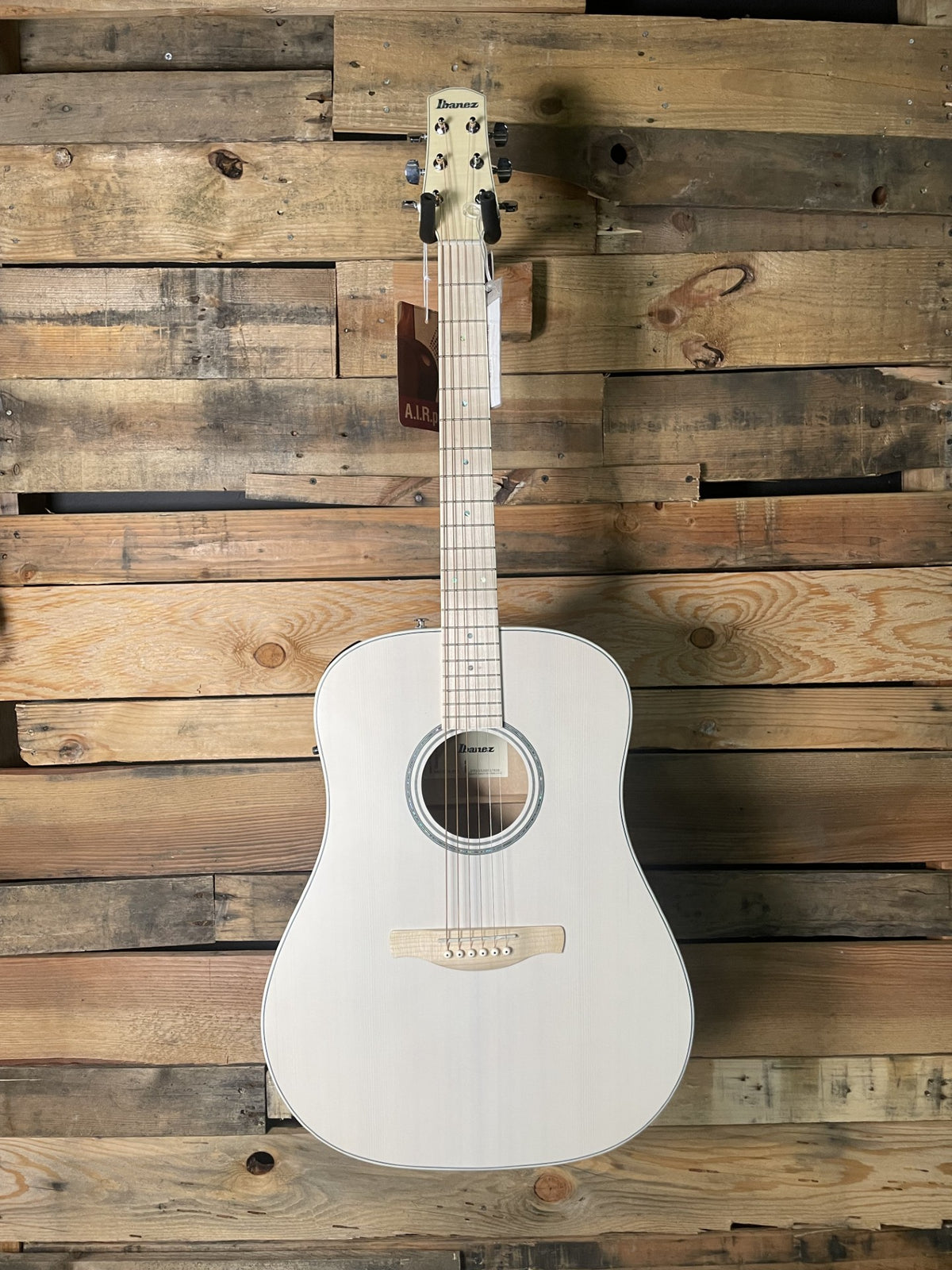

  Grand Dreadnought body

  Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.
















  X-M Bracing

  After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
















  Low Oval Grip Okoume neck

  The Low Oval neck grip facilitates easy chord strumming.
















  Maple fretboard

  The Maple fretboard provide crisp, bright highs and strong upper mids.

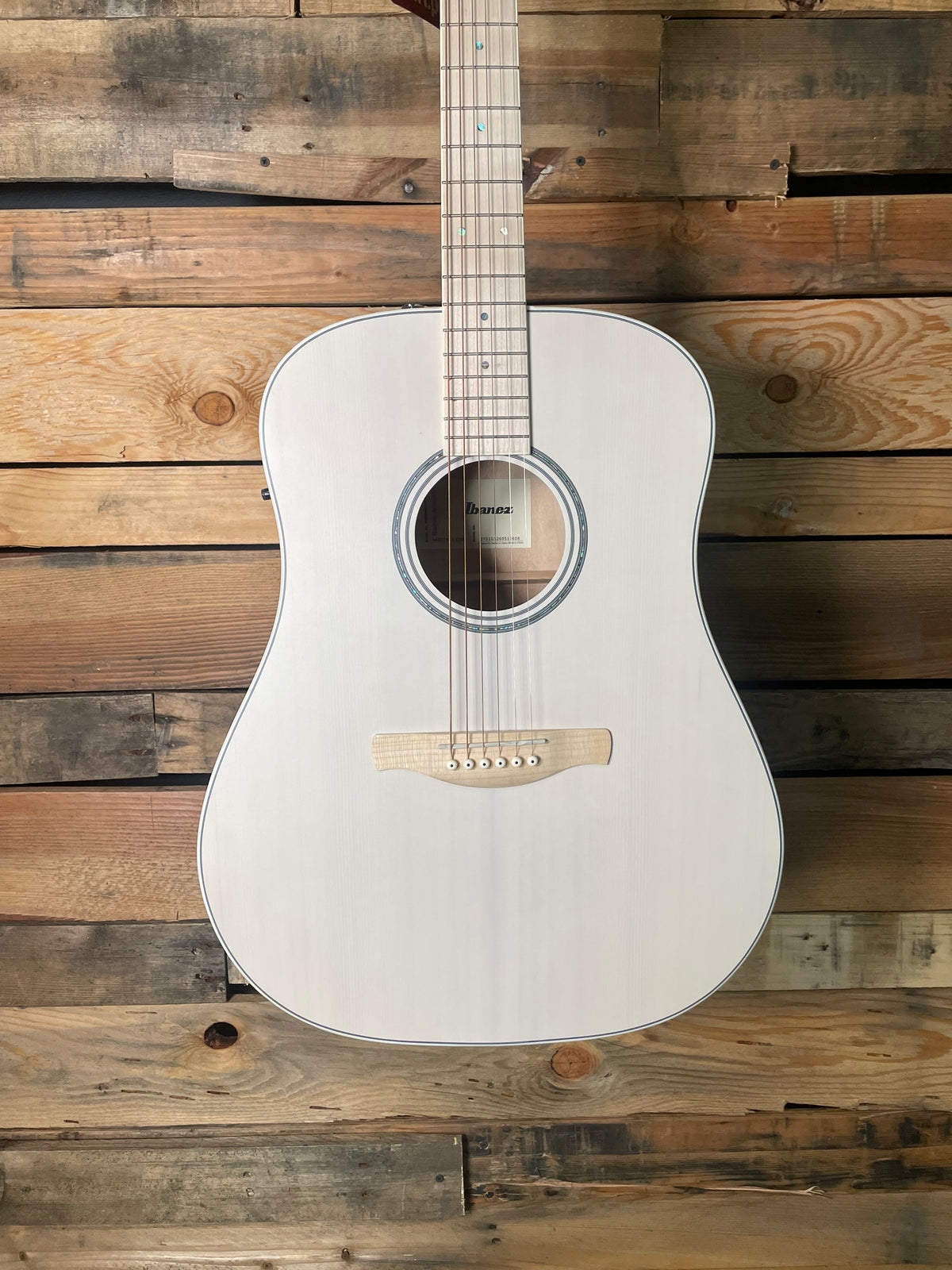

  Solid Sitka Spruce top

  Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

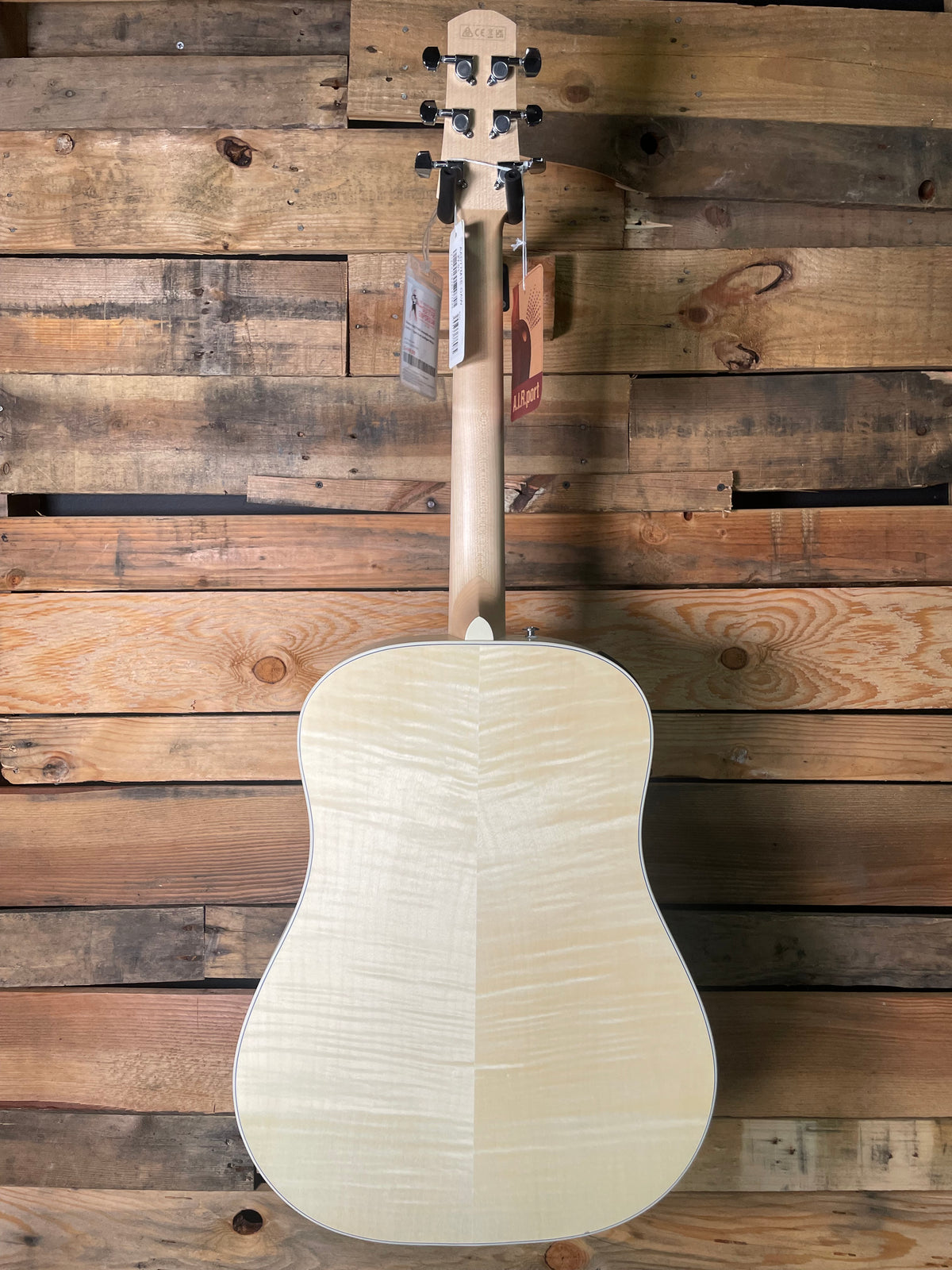

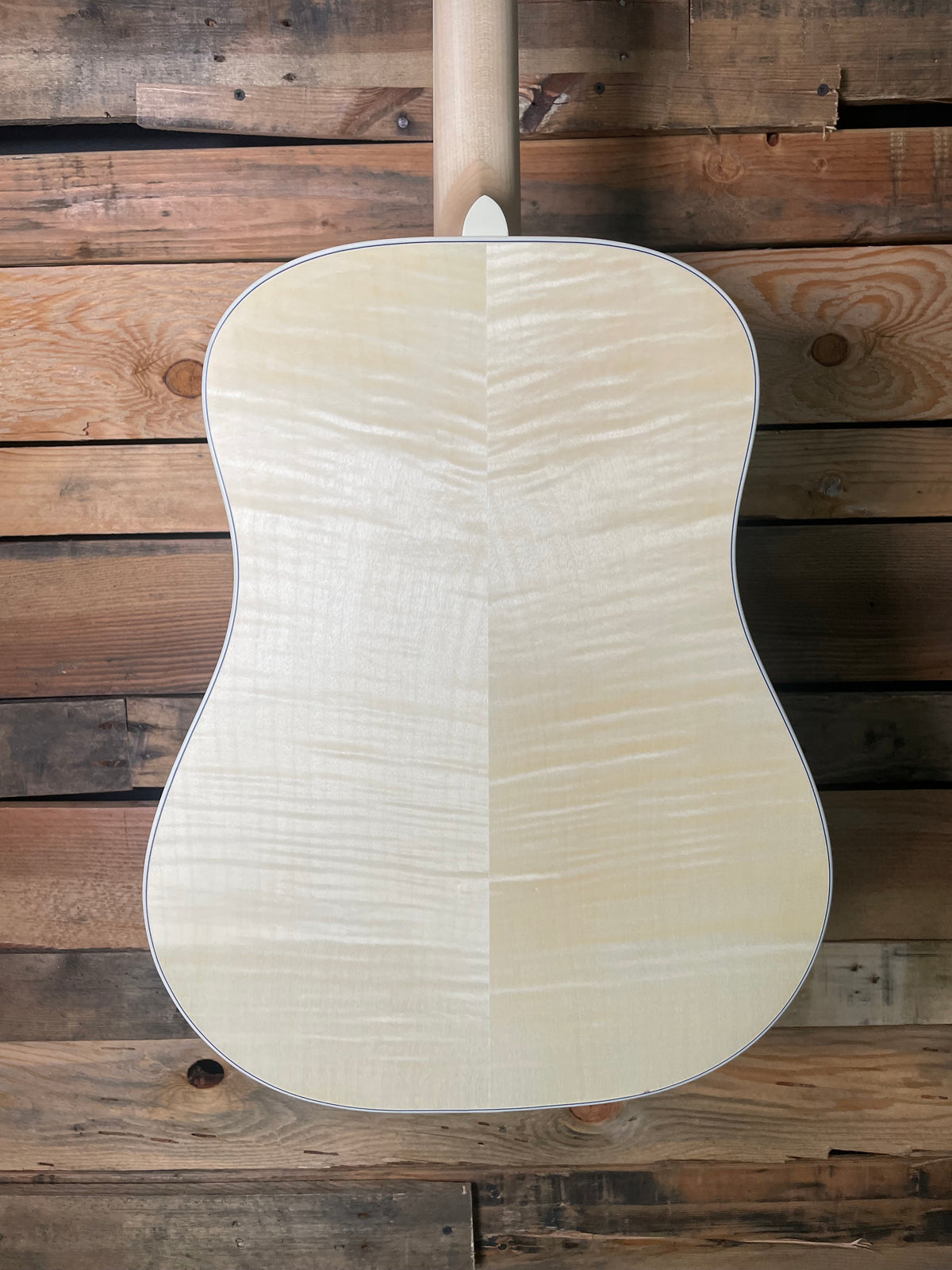

  Flamed Maple back and sides

  Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.
















  Maple bridge

  The Maple bridge transfers string vibration directly to the body, delivering a natural and warm tone.

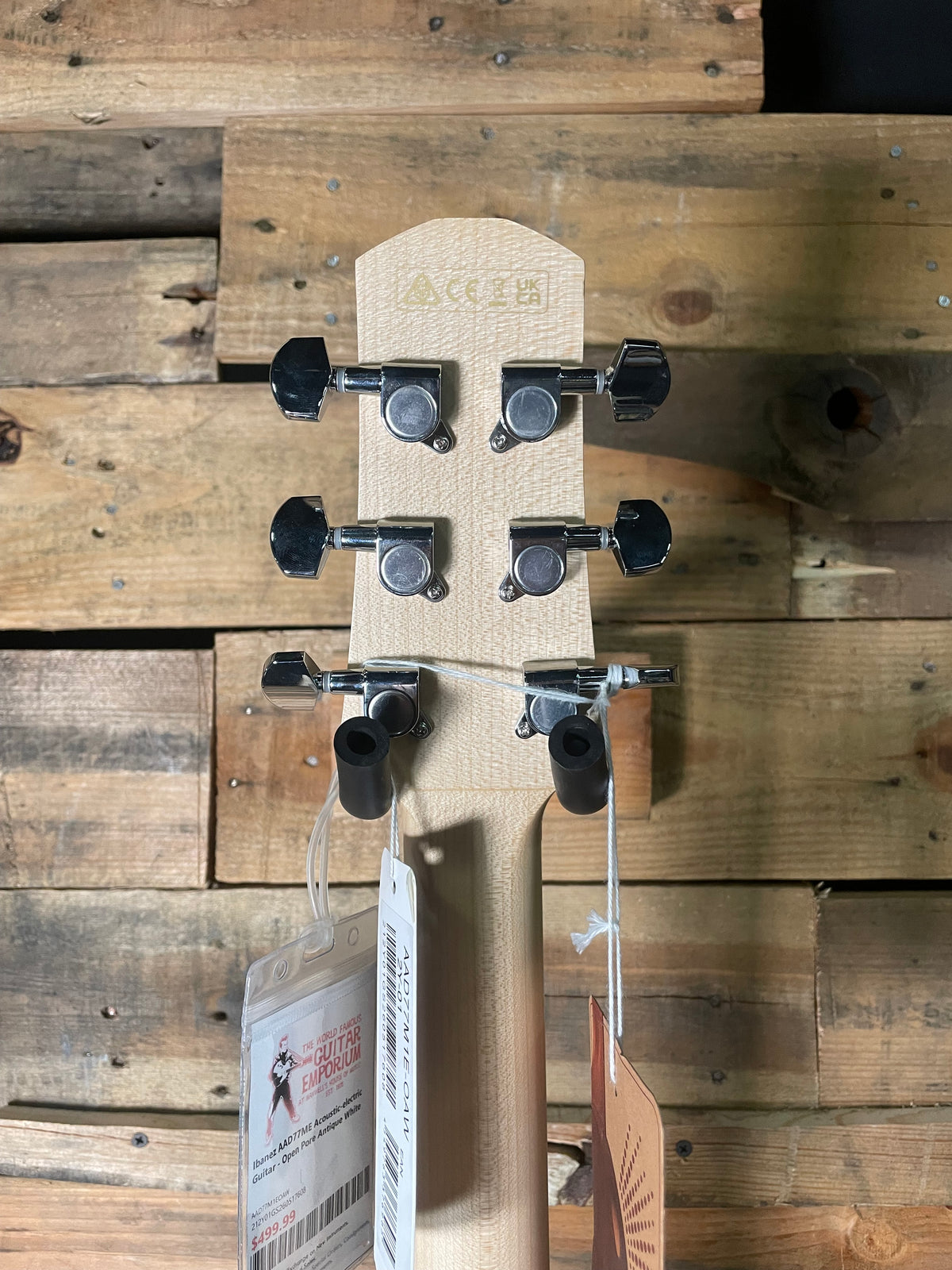

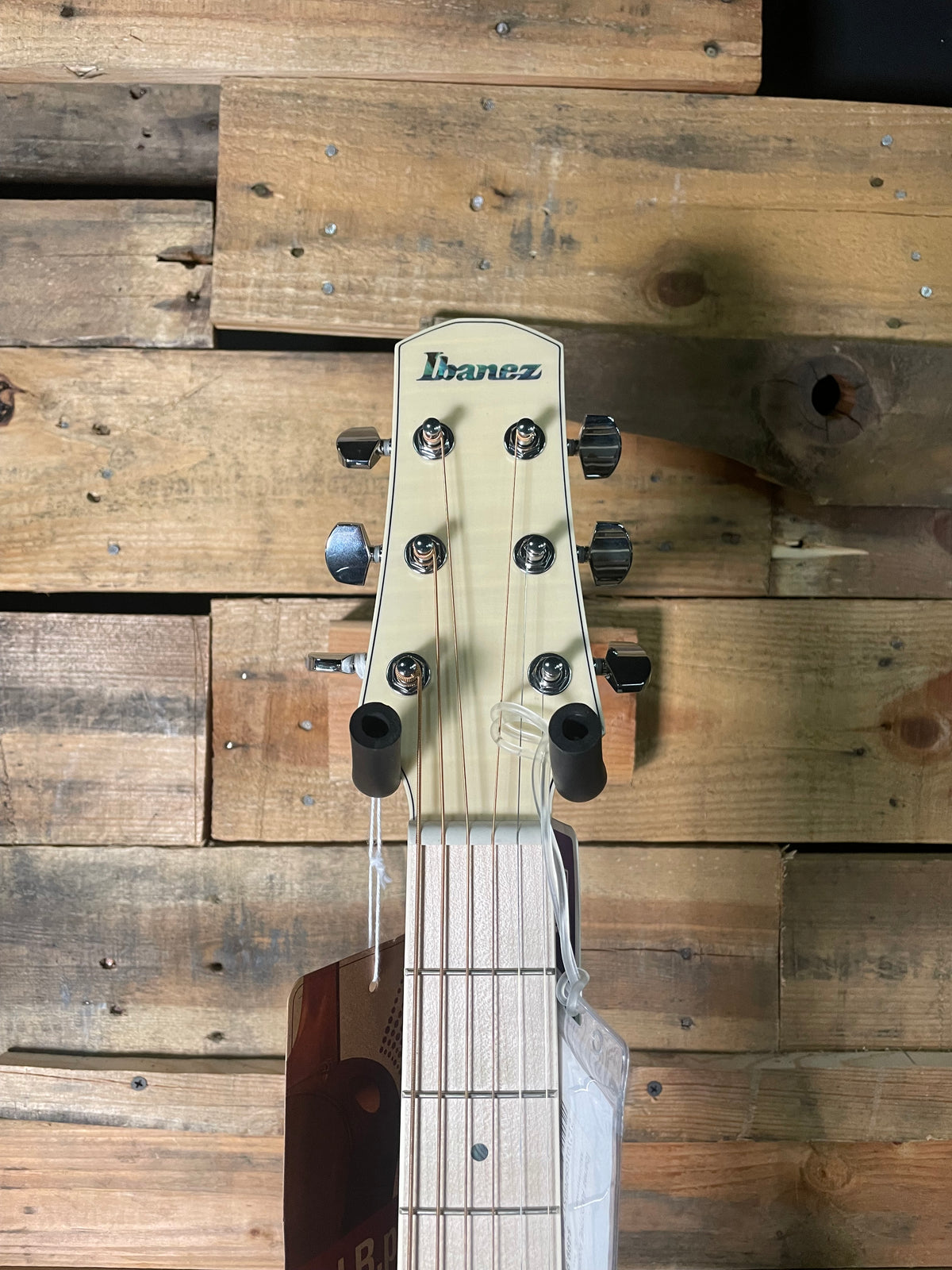

  Functional Tapered Headstock

  The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.
















  Ibanez AEQ-TP2 preamp w/Onboard tuner

  The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.
















  Ibanez T-bar Undersaddle pickup

  The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
















  Ibanez Advantage™ bridge pins

  These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
