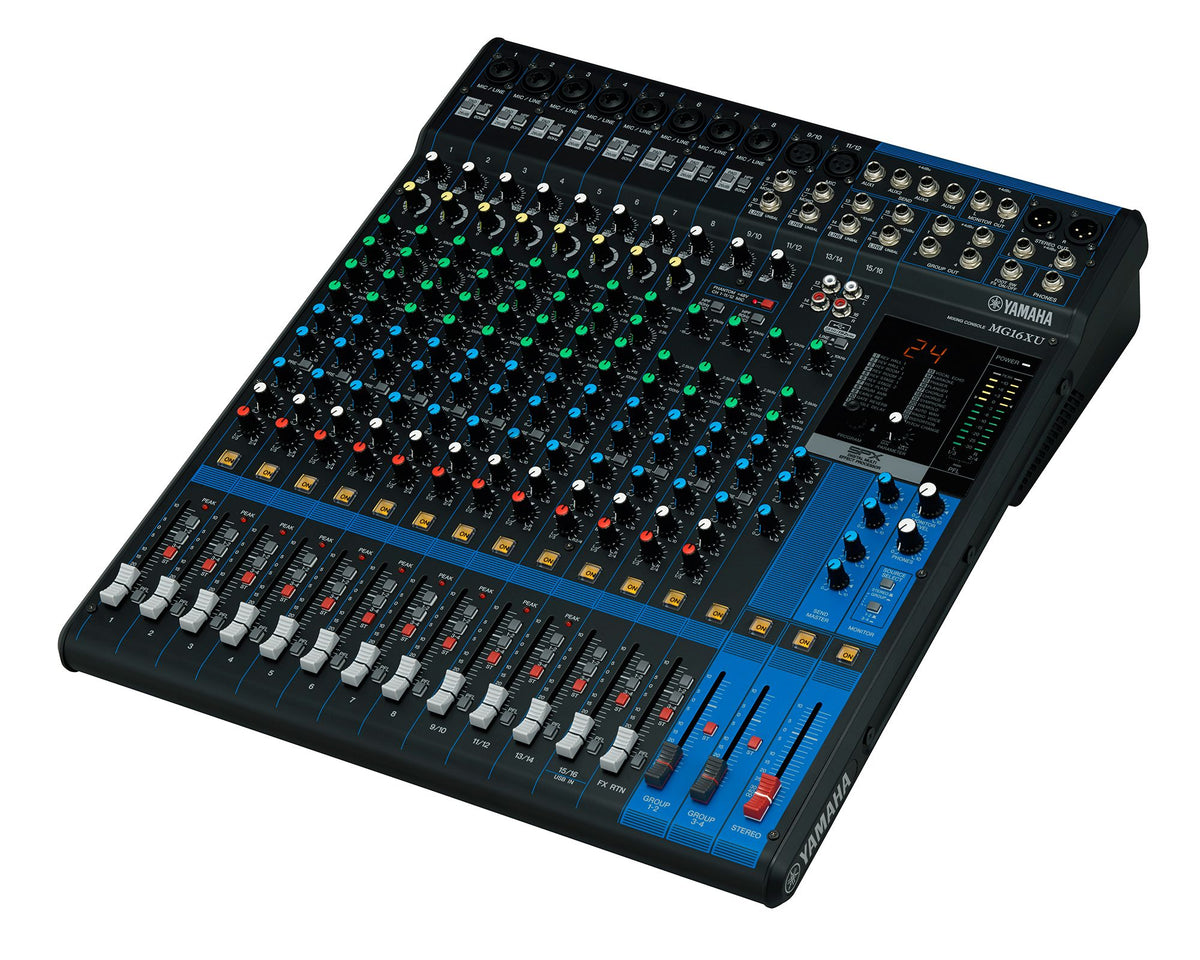

The Yamaha MG16XU is a 16-channel analog mixer with eight mono mic/line channels, two mic/line stereo channels, and two stereo line channels. Its XLR and phone inputs accommodate microphones, instruments, and stereo sources. Mono channels include an 80 Hz high-pass filter and single-knob compressor, while three-stage EQ provides onboard tone shaping across the mono and stereo channels.

The MG16XU includes 24 built-in SPX effects, adjustable with a parameter control and mixed in without a separate effects unit. USB audio supports recording and playback with a computer at up to 24-bit/192 kHz. Four AUX sends and four group outputs provide separate routing for monitor mixes, external processing, and grouped signals, alongside the stereo main output. This combination of input options, channel controls, onboard effects, and USB connectivity makes the mixer suitable for live sound and recording setups.

Specifications

• Input-channel layout: 8 mono mic/line, 2 mic/line stereo, 2 stereo line channels; 16 input channels total
• Built-in effects: SPX algorithm, 24 programs
• USB audio: USB Audio Class 2.0; 16/24-bit; 44.1, 48, 88.2, 96, 176.4, or 192 kHz
• Bus and output count: 1 stereo bus, 4 group buses, 4 AUX buses (including FX); 4 AUX sends and 4 group outputs
• Phantom power: +48 V
• Power: AC 100–240 V, 50/60 Hz; 30 W consumption
